Hi Jung 3PL said that it would not become alert in the short term. If Google requires a rectification within a certain period in the future,consider applying for waiver or replacing the key in stages. |
|
|
Hi Willing Thank you for update YK.Jung |
|
|

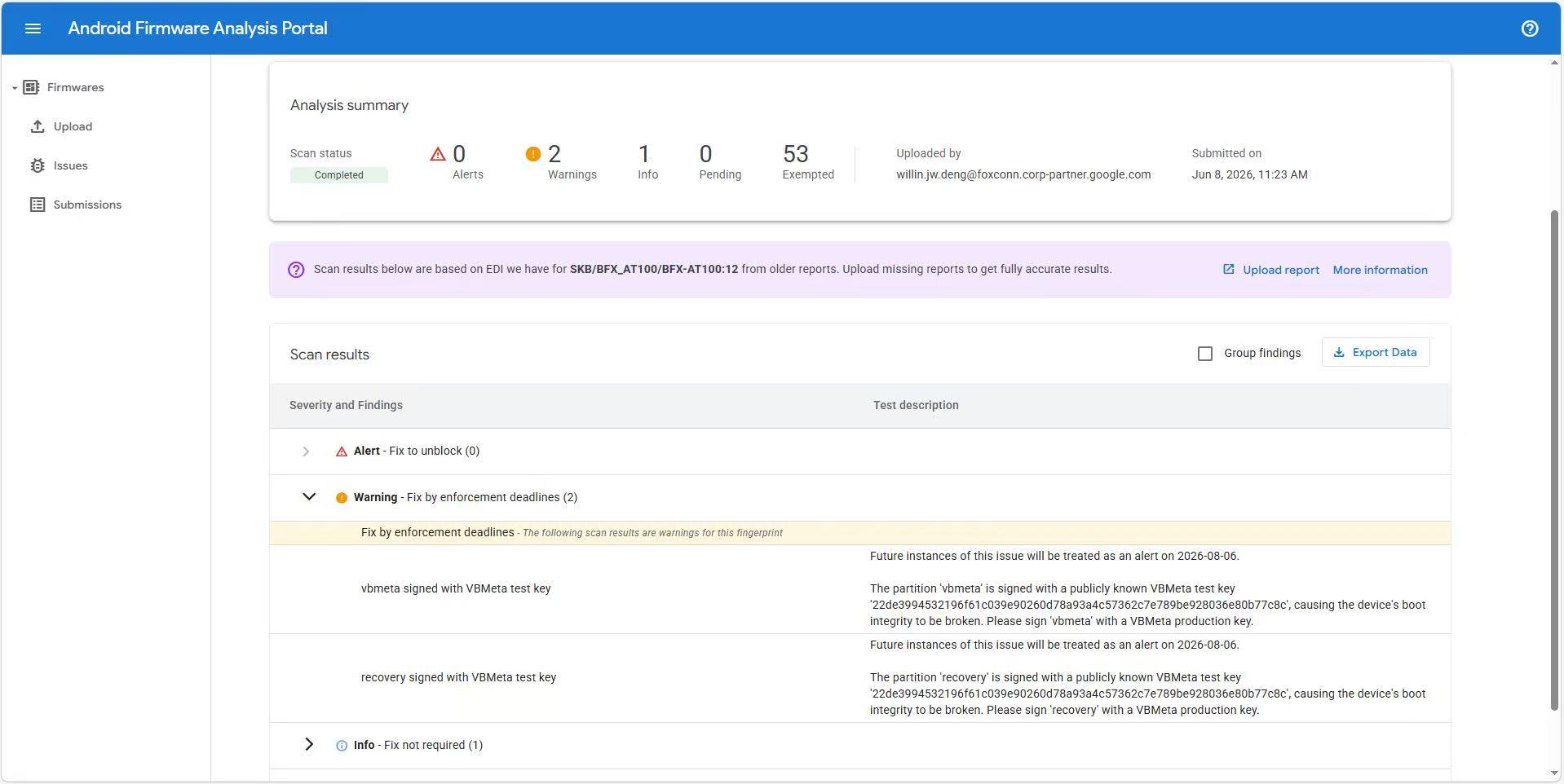

Hi Willin, Based on the BTS results released today, it has been confirmed that this issue will be changed to an alert after 2026-08-06. Since the deadline has not yet passed, there is no urgent need to fix it. However, this issue must be resolved for future firmware builds. I would like to inquire if there is a way to resolve this issue. Thank you. Kim Image_20260608161959_345_1.jpg (149,432 bytes) |
|
|
Hi Kim, The "3PL" feedback indicates that applying for a waiver may not guarantee approval. It's worth submitting the application, but it's advisable to resolve this issue first. The typical approach to updating a KEY involves locating its actual position and replacing it with a new KEY. This is done by using two firmware versions to update the KEY for the user. The first version is compatible with both the old and new KEYS, while the second version completely replaces the old KEY with the new one, thereby minimizing the risk of entering RECOVER mode. BR. Willin |
|
|
Hi Willin, 1. Could you please provide guidance on how to ensure that both the existing key and the new key are compatible? 2. Since some customers may receive the OTA update very late, using this method might require maintaining compatibility between the two keys for a considerable amount of time. In this case, it could become an issue if the Warning does not disappear from the BTS. 3. I would like to inquire if I can use the key located at the following path for the new key: vendor/foxconn/android-certs Thank you. Kim |
|
|
Hi Willin, Could you please check any updates on this issue? Thank you. Kim |
|
|
Hi Willin, I was informed that a waiver is being requested from the 3PL regarding this ticket. https://btracker-cns.fii-foxconn.com/vaas/view.php?id=2069#c17808 Since it has been discussed internally that we should also proceed with a waiver for Smart3, I think it would be best to proceed with version 15.561.128, which recently approved Google xTS. The link to the Google xTS results is as follows. http://altserver01.duckdns.org/google_xts/self_mr_report/eagle_os12/15.561.128.zip Please let me know if any requirements. Thank you. Kim |
|
|
Hi Kim, The waiver has been applied for 15.561.128.The issue url is as follows: https://issuetracker.google.com/529577441 BR. Willin |
|
|

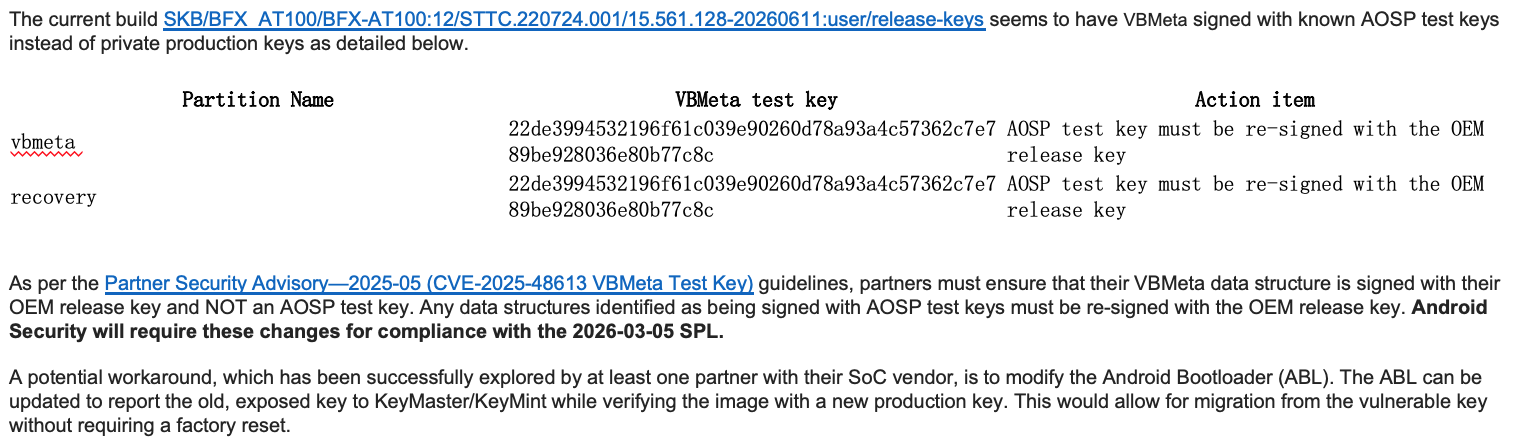

Hi Kim, Google's reply is as follows.See attached file "[SHADOWED b_529641895] [BTS] New Inquiry_ _BFX-AT100___ VBMeta test key_ [529577441] - Issue Tracker.pdf". As per the Partner Security Advisory—2025-05 (CVE-2025-48613 VBMeta Test Key) guidelines, partners must ensure that their VBMeta data structure is signed with their OEM release key and NOT an AOSP test key. Any data structures identified as being signed with AOSP test keys must be re-signed with the OEM release key. Android Security will require these changes for compliance with the 2026-03-05 SPL. A potential workaround, which has been successfully explored by at least one partner with their SoC vendor, is to modify the Android Bootloader (ABL). The ABL can be updated to report the old, exposed key to KeyMaster/KeyMint while verifying the image with a new production key. This would allow for migration from the vulnerable key without requiring a factory reset. BR. Willin google_reply_msg.png (162,268 bytes) |
|
|
the issue info and reply |
|
|
Hi Willin, Based on the 3PL response you provided, I contacted Amlogic Korea. As a result of the inquiry, I was informed that the system would boot normally if only the signing key was changed, so I modified it as follows. diff --git a/products/mbox/g12a/g12a.mk b/products/mbox/g12a/g12a.mk index db7e643..d1b4a9f 100644 --- a/products/mbox/g12a/g12a.mk +++ b/products/mbox/g12a/g12a.mk @@ -97,12 +97,12 @@ ifeq ($(BUILD_WITH_AVB),true) BOARD_AVB_ENABLE := true #BOARD_BUILD_DISABLED_VBMETAIMAGE := true BOARD_AVB_ALGORITHM := SHA256_RSA2048 -BOARD_AVB_KEY_PATH := external/avb/test/data/testkey_rsa2048.pem +BOARD_AVB_KEY_PATH := vendor/foxconn/android-certs/foxconn_avb_release_key.pem BOARD_AVB_ROLLBACK_INDEX := 0 BOARD_AVB_MAKE_VBMETA_IMAGE_ARGS += --prop dovi_hash:b00595345b44b13a3df532771168bb1af10c1a67d2c3e30cd6d51227f53dc338 ifneq ($(AB_OTA_UPDATER),true) -BOARD_AVB_RECOVERY_KEY_PATH := external/avb/test/data/testkey_rsa2048.pem +BOARD_AVB_RECOVERY_KEY_PATH := vendor/foxconn/android-certs/foxconn_avb_release_key.pem BOARD_AVB_RECOVERY_ALGORITHM := SHA256_RSA2048 BOARD_AVB_RECOVERY_ROLLBACK_INDEX := $(PLATFORM_SECURITY_PATCH_TIMESTAMP) BOARD_AVB_RECOVERY_ROLLBACK_INDEX_LOCATION := 2 The foxconn_avb_release_key.pem key was generated by me. After proceeding with the upgrade, it is booting normally. I also verified whether the signing key had changed using the command below. [Before change key] jgkim@dev2-server05:~/a12_smart3_561$ python3 external/avb/avbtool.py info_image --image out/target/product/BFX-AT100/vbmeta.img | grep Public Public key (sha1): cdbb77177f731920bbe0a0f94f84d9038ae0617d jgkim@dev2-server05:~/a12_smart3_561$ python3 external/avb/avbtool.py info_image --image out/target/product/BFX-AT100/recovery.img | grep Public Public key (sha1): cdbb77177f731920bbe0a0f94f84d9038ae0617d [After change key] jgkim@dev2-server05:~/a12_smart3_561$ python3 external/avb/avbtool.py info_image --image out/target/product/BFX-AT100/vbmeta.img | grep Public Public key (sha1): a840af6ec92ceea822b8f89e8250bae75b7ed5af jgkim@dev2-server05:~/a12_smart3_561$ python3 external/avb/avbtool.py info_image --image out/target/product/BFX-AT100/recovery.img | grep Public Public key (sha1): a840af6ec92ceea822b8f89e8250bae75b7ed5af Could you please upload this BTS FW for check BTS warning or not? FW : http://altserver01.duckdns.org/release_by_ALT/20260713_Smart3_BTS_Warning/k000c-561r1284_SU-20260713-BFX-AT100/SKB~BFX_AT100~BFX-AT100~12~STTC.220724.001~15.561.1284-20260713~user~release-keys.zip Thank you. Kim |
|
|

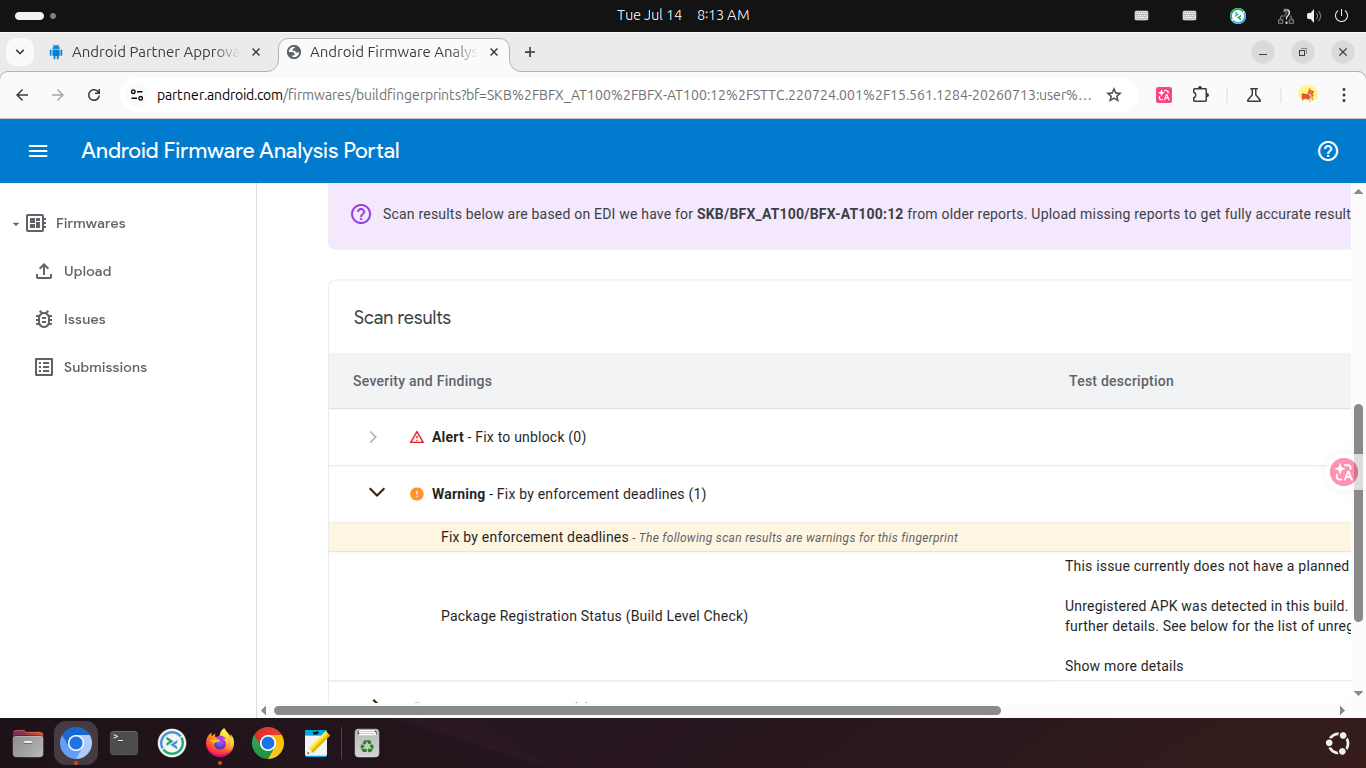

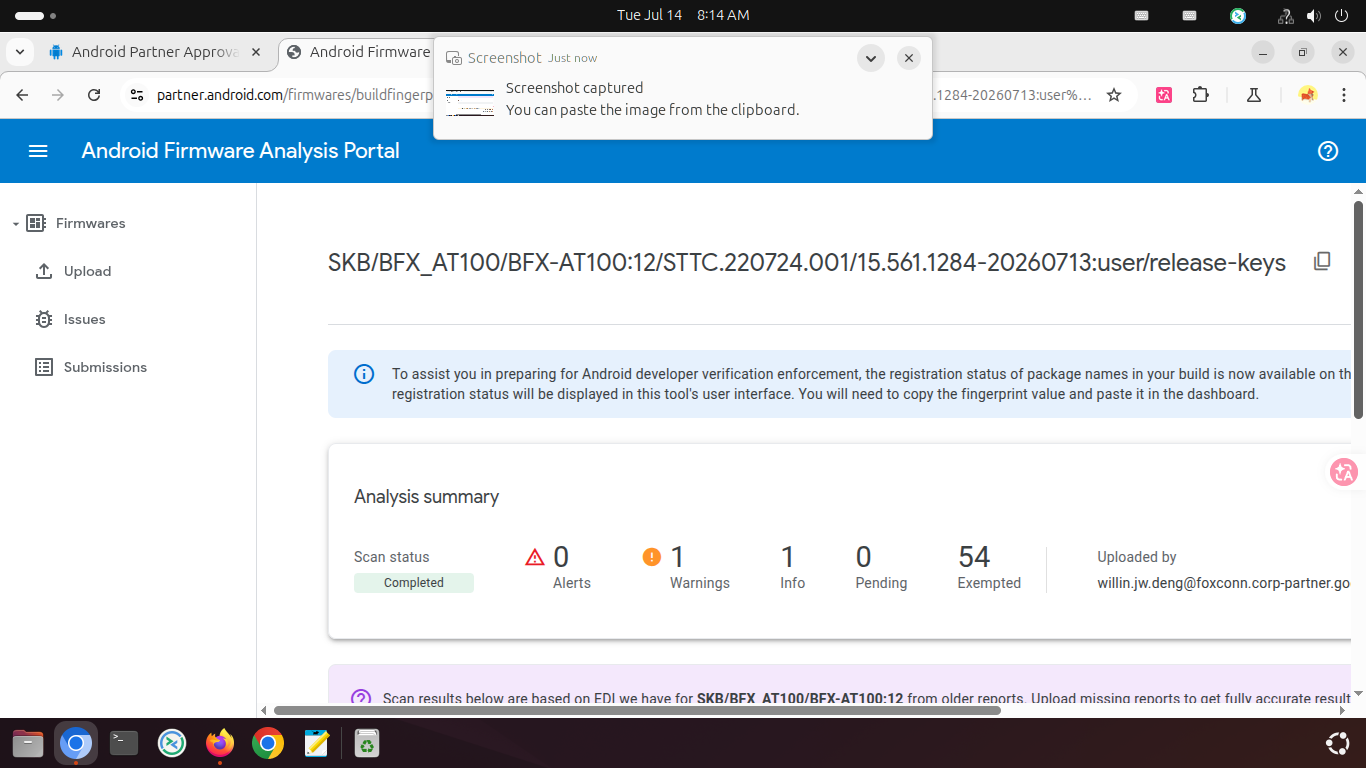

Hi Kim, fingerprint: SKB/BFX_AT100/BFX-AT100:12/STTC.220724.001/15.561.1284-20260713:user/release-keys The two warnings of public KEY signature have been removed, but a new warning about "Unregistered APK" has been added. This issue currently does not have a planned enforcement date,below for the list of unregistered APKs of warnings: com.skb.screencaster 69163578d0bc98804630cdf519800785b69203c8d1c0c63e77dc61619a300554, org.chromium.trichromelibrary 32a2fc74d731105859e5a85df16d95f102d85b22099b8064c5d8915c61dad1e0, com.google.android.webview.debug 32a2fc74d731105859e5a85df16d95f102d85b22099b8064c5d8915c61dad1e0, com.android.companiondevicemanager f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.android.providers.media.module 81716cd45398f8f03db9d851fe42ec1b8de3bd163aa8111d51649ebc683e9619, com.android.cts.ctsshim a40da80a59d170caa950cf15c18c454d47a39b26989d8b640ecd745ba71bf5dc, com.android.cts.priv.ctsshim a40da80a59d170caa950cf15c18c454d47a39b26989d8b640ecd745ba71bf5dc, com.android.providers.tv f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.android.printspooler f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.android.providers.media 81716cd45398f8f03db9d851fe42ec1b8de3bd163aa8111d51649ebc683e9619, android.autoinstalls.config.skb.bfx_at100 f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.droidlogic.droidtvsettingsoverlay f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.droidlogic.overlay f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.google.android.overlay.gtvsconfig f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.android.networkstack.tethering.inprocess.droidlogic f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.droidlogic.ble f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.google.android.overlay.googlewebview f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0, com.android.networkstack.tethering.droidlogic f10fe4d1ae8a3d32f1e63d91199730a8a2457c73c8196878ed77143fedbd8eb0 Additionally, have you attempted to upgrade this firmware? I previously modified this line, and the Public key (sha1) was successfully changed, but after the upgrade, the OTT keeps rebooting at the startup screen. BR. Willin Screenshot from 2026-07-14 08-14-02.png (159,336 bytes) Screenshot from 2026-07-14 08-13-57.png (140,116 bytes) |
|
|
Hi Willin, First, Could you please upload again this BTS FW for check BTS warning or not? FW : http://altserver01.duckdns.org/release_by_ALT/20260713_Smart3_BTS_Warning/k000c-561r1285_SU-20260723-BFX-AT100/SKB~BFX_AT100~BFX-AT100~12~STTC.220724.001~15.561.1285-20260723~user~release-keys.zip As you mentioned, I found that some devices does not boot when only the AVB Key is changed. Therefore, following Amlogic's guide, I replaced the existing hardcoded key in the bootloader with the new key and confirmed that it boots normally. Additionally, the firmware I sent last time generated the AVB Key based on the releasekey.pk8 key, But this FW, a new key has been generated newely for the AVB Key. However, I am not sure of the cause of the "Unregistered APK" issue regarding the specific apps you provided. The apps you sent are seems PRESIGNED apps, and their signing keys have not been changed. Is there a registration menu in APFE for these apps? Thank you. Kim |
|
|
Hi Kim, all the warning is fixed by the FW (Fingerprint: "SKB~BFX_AT100~BFX-AT100~12~STTC.220724.001~15.561.1285-20260723~user~release-keys.zip"). BR. Willin image-2.png (157,710 bytes) |
|
|
Hi Willin, Thank you for support. We plan to conduct tests in various cases, and we will let you know if any problems. Kim |
